Waste paper baler-Henan Bohan Environmental Protection Technology Co., Ltd.

Waste paper baler Introduction

The baler includes a bracket, the bracket has a bottom plate and front and rear side baffles, the bracket is equipped with a jack, the jack has a piston rod, the right end of the piston rod is connected with a vertical pusher plate, and the right side of the pusher plate is connected with a pusher plate The gap between the adjacent pusher slats is a rope groove on the board; the upper right part of the bracket is equipped with a pressing upper baffle, and the left side of the pressing upper baffle is equipped with a feed inlet; front and rear side barriers The brackets on the right side of the board are respectively fixedly connected with front and rear side barriers, and the gap between adjacent side barriers is a rope threading port; the right end of the bracket has a discharge port, and the right end of the bracket at the discharge port is hinged with a door panel, and the door panel is on the left Door slats are connected to the side, and the gap between adjacent door slats is the rope groove on the door; the cavity enclosed by the front and rear side baffle, the pusher plate and the bottom plate is the feed cavity, and the front and rear side baffle bars and the pressing material are upper The cavity enclosed by the baffle, the door plate and the bottom plate is a squeezing cavity; the door plate and the right end of the bracket are fixedly connected with a locking device. And the size of the package can be adjusted within a certain range according to needs.

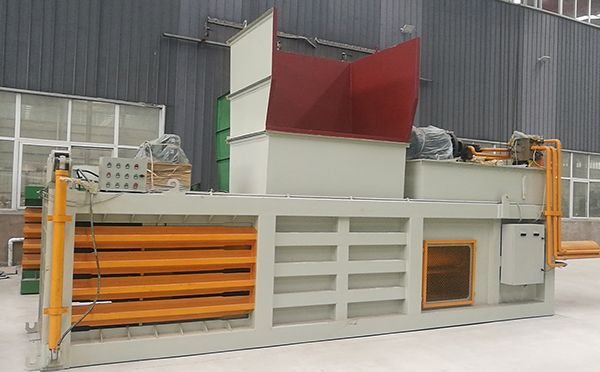

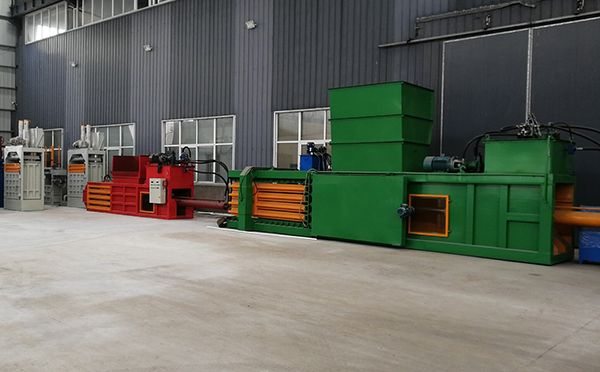

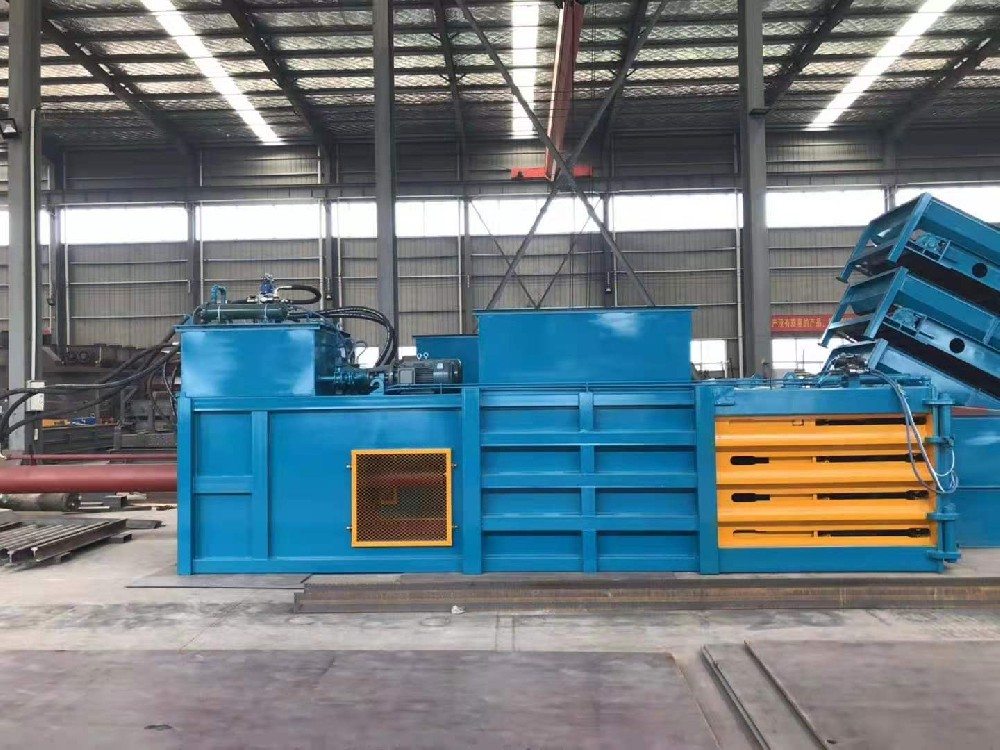

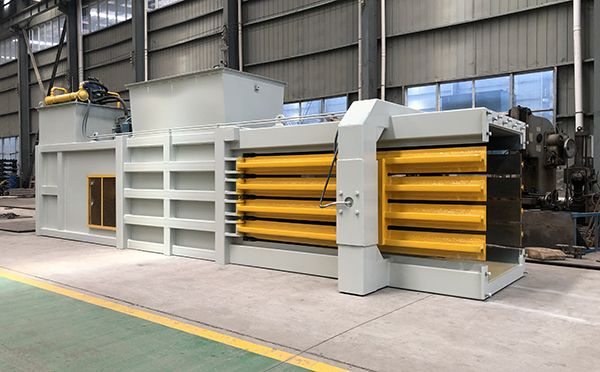

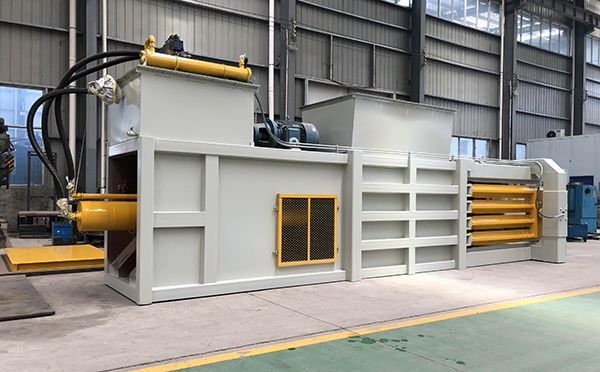

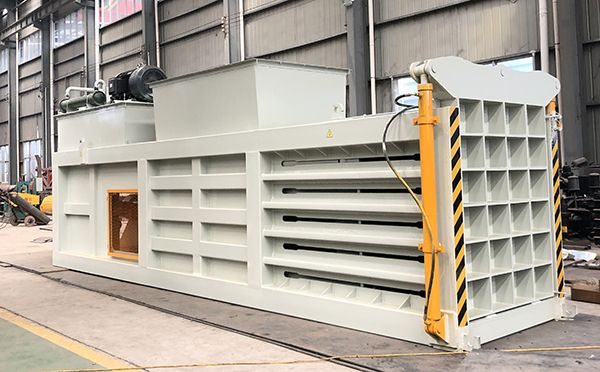

Album

Advantages

Mainly suitable for: packing loose materials, such as compressed packing of waste paper edges, cartons, straw, wheat straw, etc.

Hydraulic configuration: The low-noise hydraulic circuit system adopts the combination of imported and domestic components, which not only guarantees the quality but also reduces the cost, and the performance of the whole machine is stable.

Electrical configuration: PLC control is selected to make the circuit simple, the failure rate is low, and the inspection and troubleshooting are simple and quick.

Shearing knife: Choose internationally-used scissors design to improve paper cutting efficiency and extend the service life of the blade.

Wire binding device: International new wire binding device, saving iron wire, fast binding, low failure rate, easy to clean, maintain and repair.

Conveyor: Conveyor belt adopts new PVC material, which is anti-corrosion and anti-aging; it has the advantages of anti-slip, large conveying capacity and strong load capacity.

Working Principle

Suitable for waste paper boxes, waste cardboard, straw, pasture, waste paper packaging, cotton packaging, clothing packaging, straw packaging, plastic packaging, wool packaging, recyclable garbage packaging, and can also be applied to cotton, wool, and yarn , Tobacco, plastic, cloth, woven bags, knitted velvet, hemp, sack, wool tops, hair balls, cocoons, silk, hops, waste plastic bags and all light foam, loose materials and other soft materials are compressed and packaged, and the package is compact. It is neat and beautiful, and can greatly reduce transportation costs. It is an indispensable tool for cotton producing areas, textile enterprises, garment factories, waste material recycling stations and other various light industrial enterprises.

Parameter

Product number	Type 80	Type 120	Type 160	Type 180
Bale size	1300x800x900	1500x900x1100	1500x1100x1200	1500x1100x1300
pressure	100-130 tons	150-180 tons	200-230 tons	280-300 tons
Bag weight	500-700 kg	700-900 kg	900-1200 kg	1300-1500 kg
Yield	6 packs/h	6 packs/h	6 packs/h	6 packs/h
Strapping	3-4 ropes	3-5 ropes	3-5 ropes	3-5 ropes
power	18.5kw	22+11kw	30+15kw	30+18.5kw
Operation method	Manual or fully automatic	Manual or fully automatic	Manual or fully automatic	Manual or fully automatic
Total Weight	6.3 tons	7.8 tons	9.8 tons	11.5 tons
